How to Size Basement Drainage for 100‑Year Storm Events: Complete Guide with Design Calculations and Flood‑Proofing Tips

Introduction

Basement flooding is a leading cause of property damage in regions that experience intense rainfall. This guide explains how to size a basement drainage system to withstand a 100‑year storm event, provides step‑by‑step calculations, and recommends proven products that simplify installation while enhancing performance. Readers will learn the theoretical basis for design, how to evaluate site‑specific conditions, and practical tips for creating a flood‑proof basement.

By the end of the article, one will be able to determine pipe diameters, select appropriate catch basins, and integrate drainage mats or channel drains that meet local code requirements. The guide balances engineering rigor with accessible explanations suitable for homeowners, contractors, and building‑science professionals.

Background and Context

A 100‑year storm represents a rainfall event that has a 1 % probability of occurring in any given year. In many parts of the United States, such storms can deliver 3–5 inches of rain within a 24‑hour period, generating runoff that exceeds the capacity of standard basement sump pumps and French drains. Understanding the hydrologic cycle, soil infiltration rates, and the concept of peak discharge is essential before any sizing calculations begin.

Key terms include:

• Runoff coefficient (C): a dimensionless factor that represents the proportion of rainfall that becomes surface runoff. Impervious surfaces such as concrete have C ≈ 0.9, while well‑graded soil may have C ≈ 0.2.
• Design rainfall intensity (I): measured in inches per hour, derived from local meteorological data for the 100‑year return period.
• Peak discharge (Q): the maximum flow rate that the drainage system must convey, calculated using the Rational Method: Q = C × I × A, where A is the contributing area in acres.

These concepts form the foundation for selecting pipe diameters, catch basin capacities, and supplemental products such as drainage mats that protect vapor barriers.

Design Calculations for Basement Drainage

The Rational Method provides a quick estimate for residential projects. Assume a home with a 2,500 sq ft (≈ 0.057 acre) basement footprint, a roof‑to‑basement runoff area of 3,000 sq ft, and a 100‑year storm intensity of 4 in/hr. The site has a mixed surface with 60 % impervious (C = 0.85) and 40 % pervious (C = 0.30). The composite runoff coefficient is calculated as (0.6 × 0.85) + (0.4 × 0.30) = 0.63.

Applying the Rational Method:

Q = C × I × A
  = 0.63 × 4 in/hr × 0.057 acre
  = 0.144 cfs (cubic feet per second)

Convert to gallons per minute (GPM) using 1 cfs ≈ 448.8 GPM, yielding Q ≈ 64.5 GPM. The drainage system must therefore accommodate at least 65 GPM during peak conditions.

Pipe sizing follows the Manning equation or reference tables. For a PVC pipe with a slope of 1 % and a Manning roughness of 0.009, a 3‑inch diameter pipe carries roughly 70 GPM, providing a suitable safety margin. If the basement layout requires multiple runs, a combination of 3‑inch and 4‑inch pipes can be used to balance flow and space constraints.

Key Product Recommendations

While calculations define the required capacity, selecting reliable components ensures long‑term performance. The following products have been vetted for durability, ease of installation, and compatibility with the design parameters outlined above.

Downspout Extension and Catch Basin

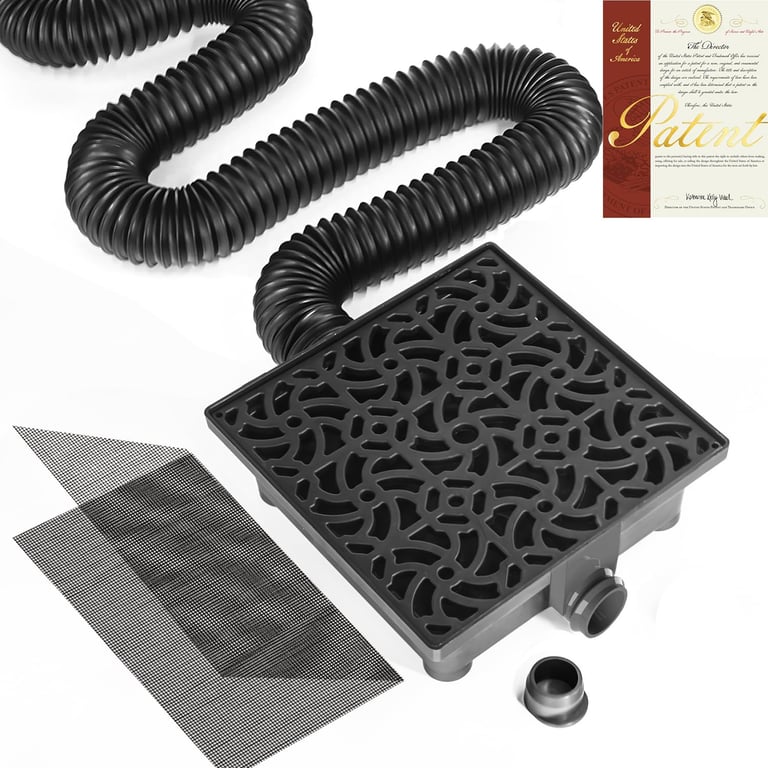

The first line of defense is to divert roof runoff away from the foundation. The NAACOO Gutter Downspout Extender offers a patented low‑profile catch basin and flexible pipe that can extend up to 8.2 ft. Its double‑drain holes improve efficiency, and the included grate filters large debris, reducing the risk of blockage in the downstream pipe. Rated 4.3 / 5.0 by over 2,300 reviewers, it is priced at $25.99 and fits standard 2×3‑inch downspouts, making it ideal for the 3‑inch pipe sections calculated earlier.

Key features include:

• US patent No. D1018796 for a unique basin slope that prevents water accumulation.
• Premium polypropylene construction resistant to UV, corrosion, and freeze‑thaw cycles.
• Modular design allows splicing for longer runs, supporting the 16‑ft flexible pipe length required in larger properties.

Stairwell and Floor Drain Protection

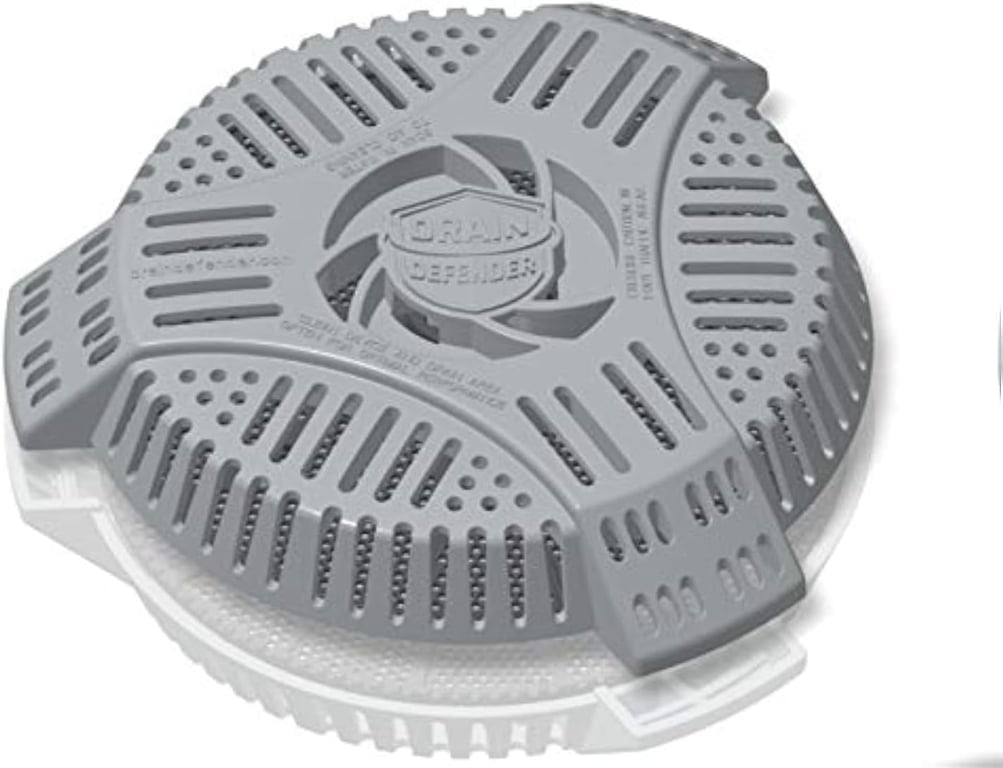

Basement stairwells and utility rooms often contain floor drains that become choke points during heavy rain. The Drain Defender Stairwell Drain Cover provides a two‑stage, patented filter system that captures both large debris and fine particles. With a 12‑inch diameter and a 2‑inch height, it fits most residential floor drains and can be installed without tools.

Highlights:

• Rated 4.5 / 5.0 by 1,000+ reviewers, praised for eliminating basement floods caused by clogged drains.
• Durable PVC construction with a slotted barrier wall and perforated inner screen.
• Easy removal for cleaning using a garden hose, ensuring maintenance remains simple.

Channel Drain Systems for Surface Water

When the property includes driveways, patios, or garden paths that direct water toward the foundation, a surface channel drain is advisable. The URA Water Channel Drain Kit supplies low‑profile polypropylene channels with removable grates, interlocking connections, and anti‑flotation feet. Each 39‑inch section measures 5 × 3 inches, and a 3‑pack provides 117 inches of continuous drainage, sufficient for most residential perimeters.

Product benefits:

• Rated 4.2 / 5.0 by 307 reviewers, noted for ease of installation and robust performance under concrete pours.
• Compatible with 4‑inch sewer pipe adapters, allowing integration with the main sump pump discharge.
• Hand‑removable grates eliminate the need for screws, simplifying periodic cleaning.

Under‑Slab Vapor Barrier Protection

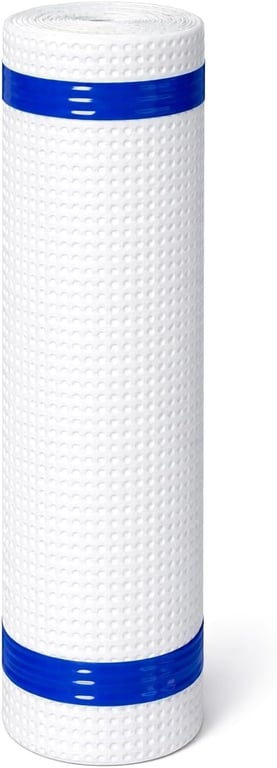

Even with an optimal drainage network, moisture can migrate through foundation walls and slabs. The Whitecap Dimple Drainage Mat creates a continuous air gap that channels water toward drains while shielding vapor barriers from puncture. The 2 × 50 ft roll, priced at $89.99 and rated 4.8 / 5.0 by 122 reviewers, is made of high‑density polyethylene and can be cut to fit any footprint.

Key attributes:

• Raised dimple design improves water flow and reduces standing moisture.
• Heavy‑duty, waterproof construction suitable for both crawl‑space and below‑slab applications.
• Easy to install with standard tools, making it a practical addition to DIY retrofits.

Alternative Low‑Profile Catch Basin

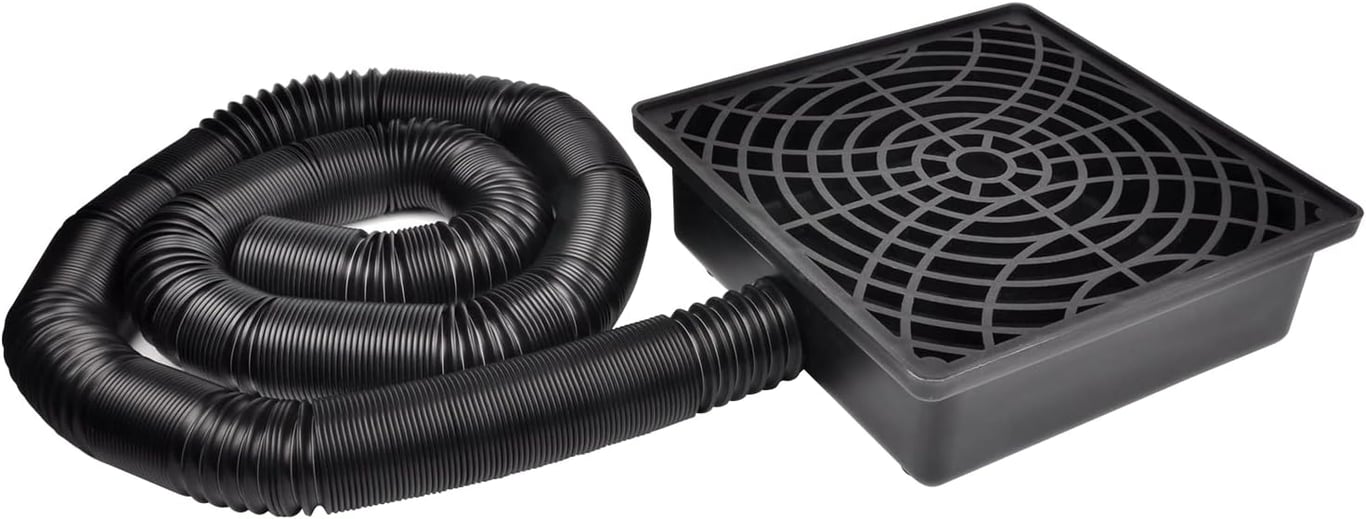

For projects that require a deeper underground installation without extensive excavation, the Prestantious Catch Basin Drain Kit offers a 12 × 12 in catch basin paired with a flexible 2‑inch ID pipe that extends up to 16.4 ft. Priced at $39.99 and holding a 4.3 / 5.0 rating, it provides an alternative to the NAACOO system when a larger pipe diameter is desired.

Notable features:

• Low‑profile design eliminates the need for deep digging, preserving landscaping.
• Flexible pipe can be re‑shaped to navigate around obstacles, matching the design flexibility required for complex basements.
• No additional adapters are needed; the pipe connects directly to the basin, reducing potential leak points.

Comparison and Selection Guide

The table below summarizes the five featured products, highlighting their most relevant specifications for a 100‑year storm drainage design.

Product	Primary Function	Key Specs	Price	Rating
NAACOO Gutter Downspout Extender	Downspout catch basin & pipe extension	12 × 12 in basin, pipe 2.5‑8 ft, PP material	$25.99	4.3 / 5 (2,366)
Drain Defender Stairwell Drain Cover	Floor‑drain debris filter	12" diameter, two‑stage PVC filter	$39.95	4.5 / 5 (1,007)
URA Water Channel Drain Kit	Surface channel drainage	5" W × 3" H × 39" L, interlocking, 4" outlet	$139.99	4.2 / 5 (307)
Whitecap Dimple Drainage Mat	Vapor‑barrier protection & sub‑slab flow	2 × 50 ft roll, HDPE dimple design	$89.99	4.8 / 5 (122)
Prestantious Catch Basin Drain Kit	Low‑profile underground catch basin	12 × 12 in basin, 2" ID pipe 4.6‑16.4 ft	$39.99	4.3 / 5 (404)

When choosing components, consider the following decision matrix:

1. Runoff source: Roof runoff benefits most from a downspout extender (NAACOO or Prestantious).
2. Basement interior drains: Protect floor drains with the Drain Defender cover.
3. Surface water paths: Install a channel drain kit (URA) along driveways or patios.
4. Sub‑slab moisture control: Apply the Whitecap dimple mat beneath the slab or in crawl spaces.
5. Budget constraints: NAACOO offers the lowest cost per foot of flexible pipe, while URA provides a higher‑capacity surface solution at a larger price point.

Best Practices & Practical Tips

Beyond product selection, successful basement drainage requires diligent planning and maintenance:

• Perform a site survey: Identify all potential water entry points, including window wells, foundation cracks, and interior floor drains.
• Maintain proper slope: Ensure that all horizontal pipe runs maintain a minimum slope of 1 % (1 ft drop per 100 ft) toward the sump pump or municipal drain.
• Use cleanouts: Install access cleanouts at strategic intervals to facilitate periodic inspection and debris removal.
• Integrate a backup power source: A battery‑backed sump pump prevents failure during power outages that often accompany severe storms.
• Regularly inspect catch basins and grates: Remove leaves, twigs, and sediment to preserve hydraulic capacity.
• Seal foundation cracks: Apply epoxy or polyurethane sealants before installing drainage mats to minimize infiltration.

Applying these practices in conjunction with the recommended products creates a redundant, resilient system capable of handling the extreme flow rates calculated for a 100‑year storm.

Frequently Asked Questions

1. How do I determine the correct pipe diameter for my basement?

Use the Rational Method to calculate peak discharge (Q) and then refer to pipe‑capacity tables. For residential basements, a 3‑inch PVC pipe typically handles 60‑70 GPM at a 1 % slope, which satisfies most 100‑year storm scenarios.

2. Can I use the NAACOO extender with an existing French drain?

Yes. The flexible pipe can be spliced to connect with a French drain outlet, provided the pipe diameters are compatible (commonly 2‑inch or 3‑inch). Use hose clamps supplied in the kit to secure the joint.

3. What maintenance schedule is recommended for the Drain Defender cover?

Inspect the cover after each major storm and clean the outer slotted wall and inner screen with a garden hose. Full removal and rinsing should be performed at least twice per year.

4. Is the Whitecap dimple mat suitable for retrofitting an existing basement?

Absolutely. The mat can be cut to size and laid over an existing vapor barrier before installing a new sub‑slab drainage layer. Its lightweight nature allows installation without heavy equipment.

5. How far should a downspout be extended from the foundation?

A minimum distance of 6 feet is recommended to prevent water from pooling near the footings. The NAACOO and Prestantious extenders provide sufficient length to achieve this separation.

6. Do I need a permit to install a URA channel drain?

Permit requirements vary by municipality. Generally, if the drain discharges to a public storm sewer, a permit is required. Check local building codes before installation.

7. What is the lifespan of these drainage products?

All featured products are constructed from UV‑stable polypropylene or PVC, which can exceed 20 years when properly maintained. Regular cleaning and inspection prolong service life.

Conclusion

Designing a basement drainage system for a 100‑year storm involves accurate hydrologic calculations, thoughtful selection of pipe sizes, and the integration of reliable, easy‑to‑maintain components. By applying the Rational Method, choosing products such as the NAACOO Gutter Downspout Extender, Drain Defender Stairwell Drain Cover, URA Water Channel Drain Kit, Whitecap Dimple Drainage Mat, and Prestantious Catch Basin Drain Kit, and following best‑practice maintenance routines, homeowners can achieve a flood‑proof basement that protects both the structure and its contents.

Investing time in proper design now reduces costly repairs and insurance claims after extreme weather events. The guide equips one with the knowledge to make informed decisions, implement a resilient system, and maintain it for decades.
