Introduction
Properly sizing a sump pump basin is essential for preventing basement flooding, protecting foundation integrity, and ensuring the longevity of the pump system. This guide will teach the reader how to calculate the required diameter, depth, and capacity of a basin based on household water load, pump specifications, and installation constraints. By following the step‑by‑step instructions, one can achieve a reliable drainage solution that operates efficiently and quietly.
What You'll Need
- Measuring tape or laser distance measurer
- Calculator or spreadsheet software
- Level and plumb line
- Safety gloves and goggles
- Recommended tools and products (see step sections for details)
Step 1: Assess Water Volume and Inflow Rate
The first task is to estimate the maximum volume of water that may enter the sump pit during a storm event. One should consider sources such as washing‑machine discharge, laundry tub overflow, groundwater seepage, and roof‑drain runoff. A practical method is to add the peak flow rates of each source. For example, a typical washing‑machine may discharge up to 30 gallons per minute, while a laundry tub may add another 10 gallons per minute. Groundwater seepage is often measured in gallons per hour; a conservative estimate of 100 gallons per hour is reasonable for many basements.
Calculate the total inflow (GPM) by summing the individual rates. In this example, the total inflow equals 40 GPM. This figure will be used to determine the required pump capacity and basin size.
Step 2: Determine Desired Pump Run Time
Run time is the period the pump can operate before reaching its shut‑off point. A common design goal is a 5‑minute run time, which balances energy consumption with effective water removal. Multiply the total inflow by the desired run time to obtain the minimum basin capacity.
Using the 40 GPM inflow and a 5‑minute run time, the calculation is 40 GPM × 5 min = 200 gallons. Therefore, the basin must hold at least 200 gallons of water without overflowing.
Step 3: Choose a Basin That Meets Capacity Requirements

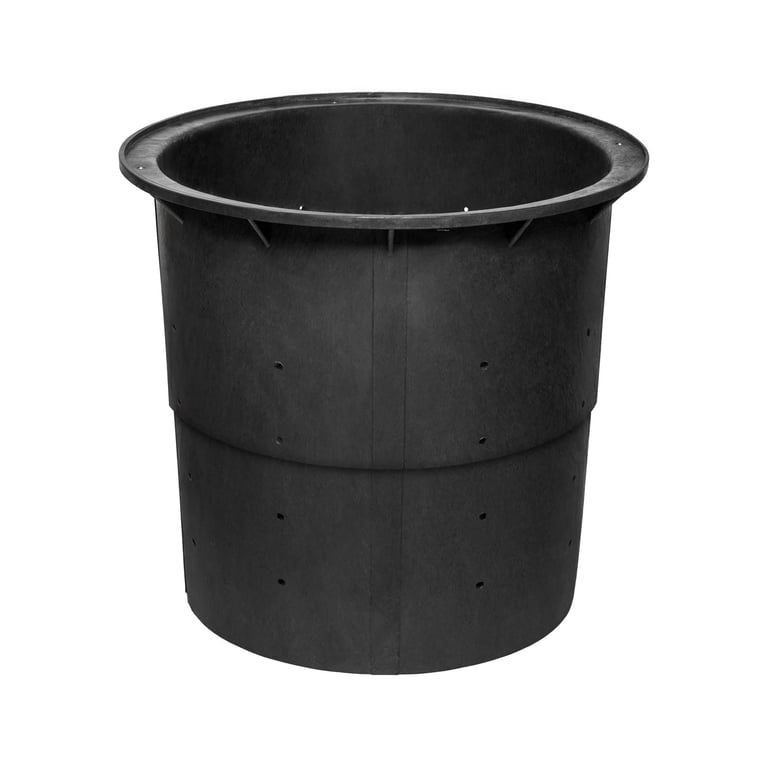

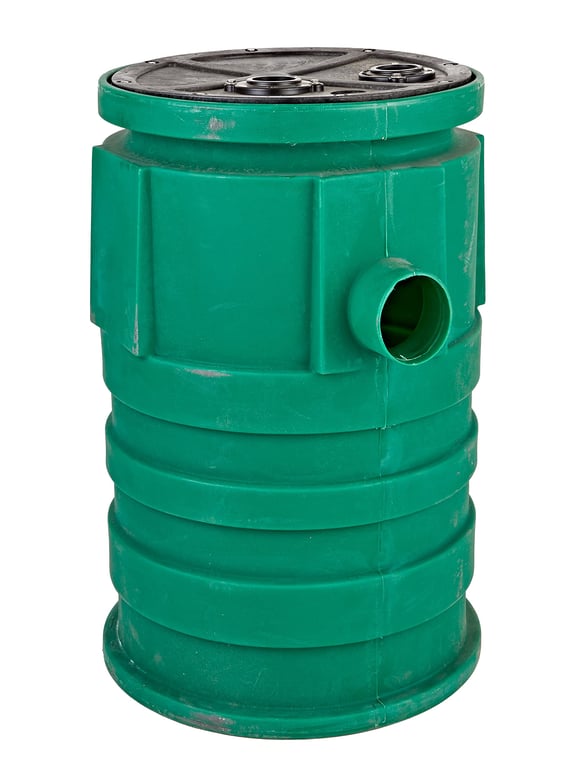

Now that the required capacity is known, select a basin whose volume meets or exceeds the calculated value. The Jackel Telescopic Sump Basin offers a 16‑gallon capacity, which is insufficient for a 200‑gallon requirement. In contrast, the Little Giant Basin & Cover Assembly provides a 22‑inch × 30‑inch basin capable of holding roughly 300 gallons, comfortably exceeding the minimum.
Key features of the Little Giant assembly include high‑density polyethylene construction for chemical resistance, anti‑torque stops that prevent pump movement, and pre‑drilled side outlets for easy plumbing. At $269.95 with a 4‑star rating from 9 reviews, it presents a durable, long‑term solution for larger water loads.
Step 4: Verify Basin Dimensions Fit the Installation Space
Measure the crawl space or basement area where the basin will be placed. Ensure there is at least 2 inches of clearance around the basin for maintenance access. The Little Giant basin measures 22 inches by 30 inches, so a space of at least 24 inches by 32 inches is advisable.
If space is limited, the Jackel Telescopic Sump Basin can be advantageous because it expands from 9.75 inches to 17.5 inches, allowing a compact storage configuration. However, its 16‑gallon capacity makes it suitable only for low‑volume applications such as a single laundry tub.
Step 5: Select a Pump That Matches Basin Capacity and Inflow

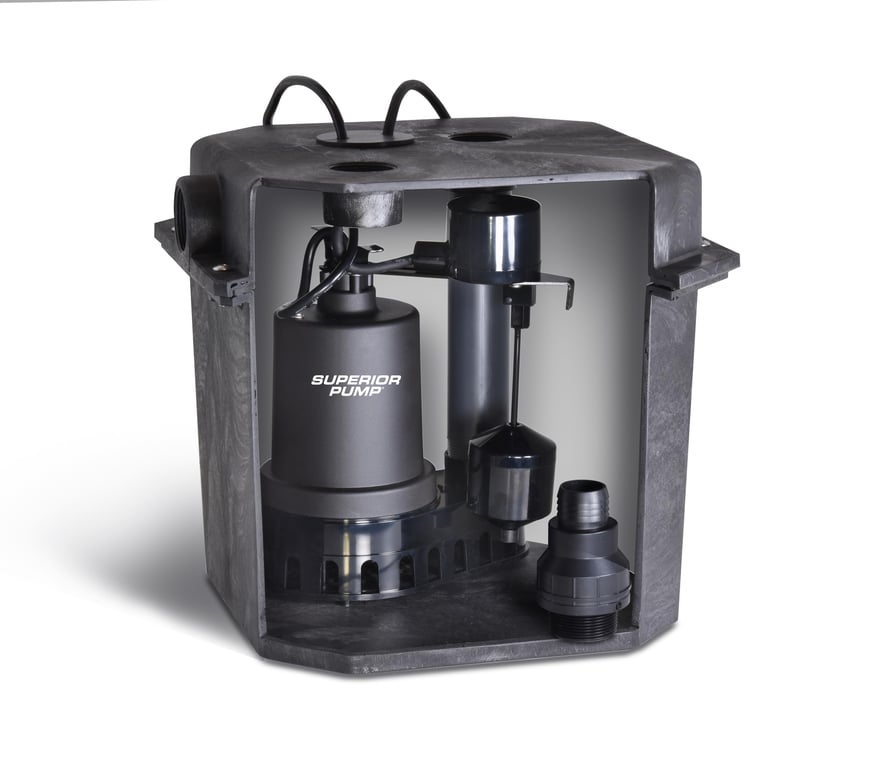

Match the pump’s flow rating to the basin’s capacity and the calculated inflow. The Superior Pump Remote Sink Drain System delivers up to 48 GPM (approximately 36 GPM at 5 feet of head), which comfortably exceeds the 40 GPM inflow in the example. Its 1/3 HP submersible motor, corrosion‑resistant thermoplastic construction, and built‑in check valve make it a reliable choice for continuous operation.
Price is $249.91 and the product holds a 4.3‑star rating from 500 reviews, indicating strong customer satisfaction. The kit includes a 6‑gallon basin, but the basin can be swapped for a larger one such as the Little Giant model, allowing the user to combine a high‑capacity pump with a high‑capacity basin.
Step 6: Install the Basin and Pump Assembly
- Position the basin on a level concrete slab or a reinforced wooden platform. Use a level to verify that the base is flat.
- Place the pump at the bottom of the basin, ensuring the float switch is free to move vertically.
- Connect the pump discharge pipe to the basin’s side outlet using the included 1‑1/2‑inch FIP fittings. Secure with Teflon tape to prevent leaks.
- Install the check valve (often supplied with the pump kit) on the discharge line to prevent backflow.
- Route the power cord to a GFCI‑protected outlet. The Superior Pump includes a 10‑foot waterproof cord, sufficient for most basement installations.
During installation, the anti‑torque stops on the Little Giant basin keep the pump from shifting when it starts, reducing vibration and noise. The basin’s structural foam cover provides a tight seal, preventing odors and insects from entering the pit.
Step 7: Test the System and Adjust Settings
Fill the basin with water to simulate a storm event. Observe the float switch activation point and the pump’s shut‑off point. If the pump cycles too frequently, adjust the float height or install a secondary shut‑off valve to throttle the flow, as suggested by many users of the Superior Pump system.
Measure the time required to empty the basin. For a 300‑gallon basin and a pump rated at 36 GPM at the expected head, the theoretical emptying time is approximately 8.3 minutes. Real‑world performance may vary due to friction losses; a 10‑minute test run is a reasonable target.
Tips & Pro Tips
- Use a check valve. Prevents water from flowing back into the basin after the pump shuts off, reducing cycling.
- Install a backup battery. A battery‑backed UPS ensures the pump operates during power outages, protecting against sudden flooding.
- Seal all penetrations. Apply silicone sealant around pipe entries to avoid moisture ingress.
- Consider vibration isolation. Place a rubber mat beneath the basin to further dampen pump vibrations, especially in finished basements.
- Regular maintenance. Inspect the float switch and suction screen quarterly; clean debris to maintain flow efficiency.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump runs continuously | Float switch stuck or water level too high | Check float movement, adjust height, ensure check valve is installed correctly |
| Insufficient flow rate | Clogged suction screen or undersized discharge pipe | Clean screen, verify pipe diameter matches pump specifications |
| Excessive noise | Vibrations transmitted through the basin | Use anti‑torque stops (Little Giant) and place rubber isolation mat beneath basin |
Conclusion
By accurately estimating water volume, selecting a basin with adequate capacity, and pairing it with a pump that meets the required flow rate, one can create a robust sump pump system that protects the home from water damage. The guide has outlined each calculation, product recommendation, and installation step, empowering the reader to execute the project confidently. Proper testing and routine maintenance will ensure long‑term reliability.
Products Mentioned in This Guide
Frequently Asked Questions
How do I calculate the required diameter of a sump pump basin?
Add the peak flow rates of all water sources, then use the formula D = 2√(V/πh) where V is the total volume and h is the desired water depth.
What depth should a sump pump basin be for optimal performance?
A depth of 3‑4 feet allows enough water storage while keeping the pump’s head within its rated range.
How much water volume should the basin be able to hold?
Size the basin to hold at least 1.5‑2 times the estimated maximum storm‑water inflow to prevent overflow.
Do pump specifications affect basin sizing?
Yes; match the basin’s capacity and head to the pump’s flow rate and maximum lift to ensure efficient operation.
What tools are needed to measure and install a sump pump basin?
You’ll need a measuring tape or laser distance measurer, a level, a plumb line, and safety gloves and goggles.
