Introduction
Flood prevention in basements and water‑storage facilities relies heavily on reliable sump pump systems. A critical component of any pump system is the float switch, which determines when the pump should start and stop based on water level. Selecting the appropriate float switch type can reduce energy consumption, prevent pump burnout, and protect property from water damage.

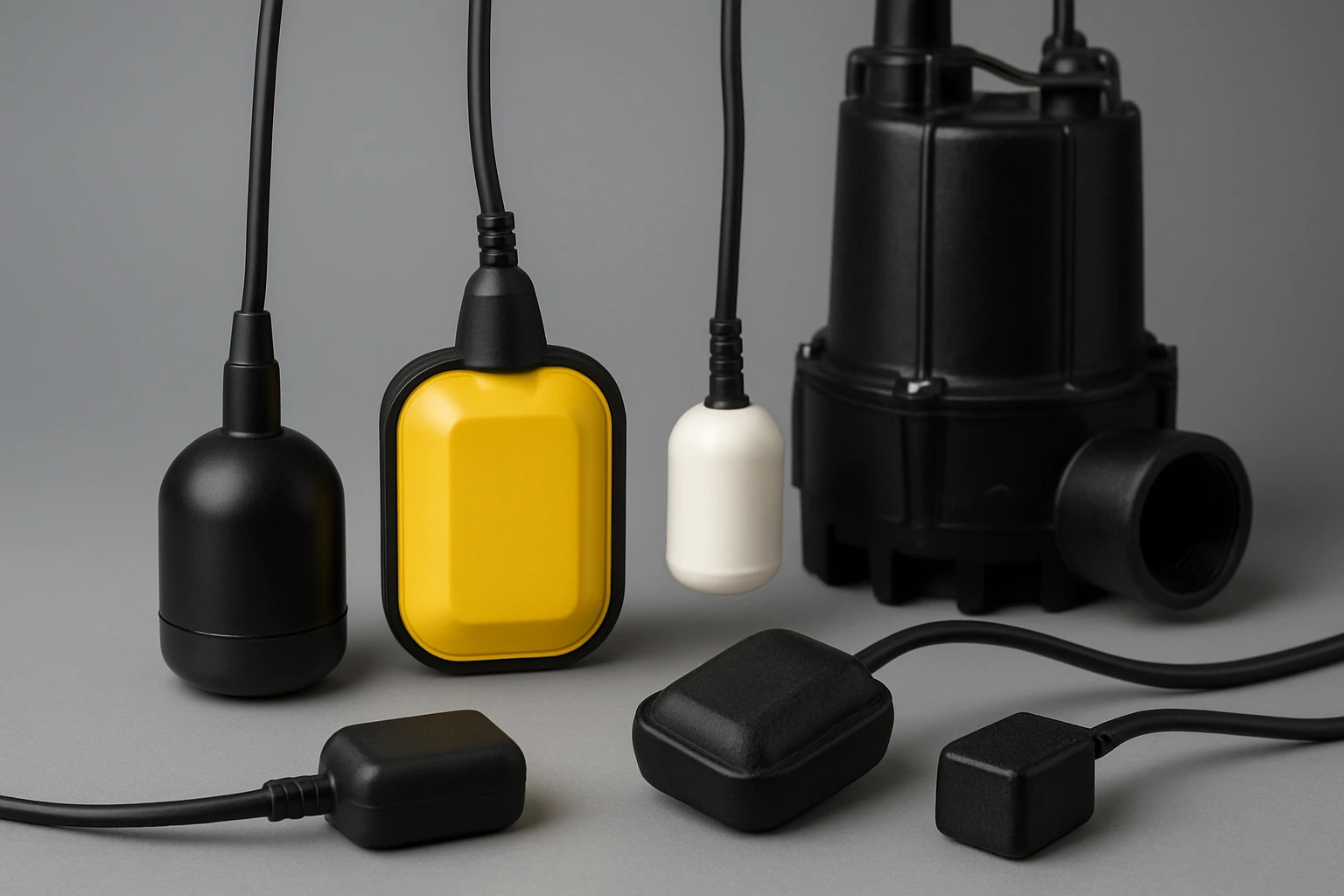

Readers who understand the distinctions among float switch designs are better equipped to choose a solution that matches their installation environment and maintenance preferences. The following listicle outlines seven common float switch categories, evaluates their advantages and disadvantages, and highlights a top‑rated product that exemplifies many of the desirable traits.
1. Mechanical Vertical Float Switches
Mechanical vertical float switches are among the most straightforward devices on the market. They employ a buoyant ball that rises with water and mechanically actuates a contact to power the pump. This simplicity translates into low cost, minimal electronic failure points, and easy troubleshooting.

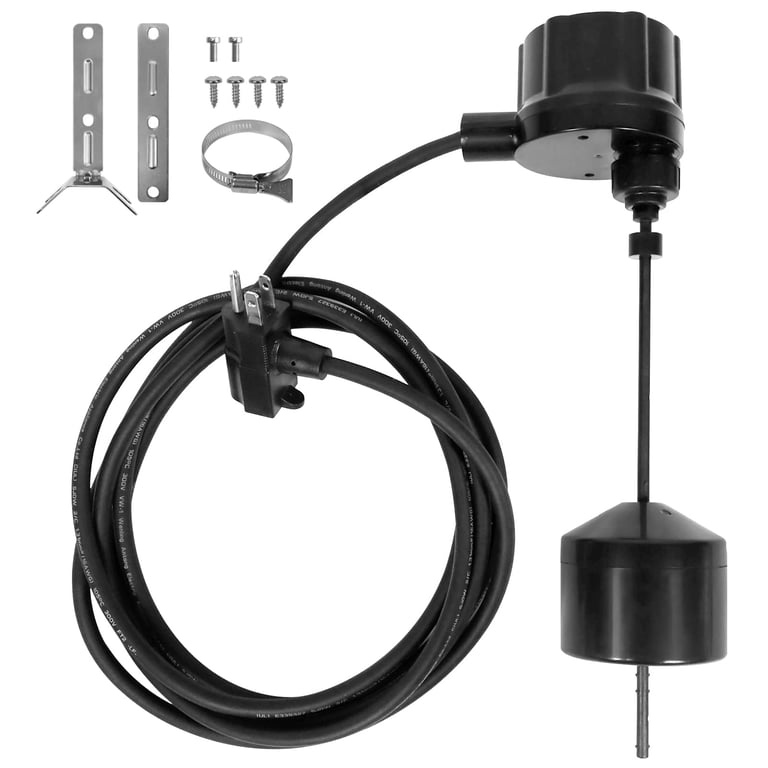

The WASSERMANN Vertical Float Switch exemplifies this category. Priced at $36.99, it offers a 10 ft cable, a piggyback plug compatible with most pump connectors, and a maximum current rating of 16 A at AC 125 V/250 V. Its waterproof housing ensures stable operation in humid environments, and the dual‑installation option allows mounting on either the pipe or the pump.
Customer feedback underscores its reliability: “The switch fit nicely in the well beside the pump, and it has been working flawlessly for almost a month now,” notes one reviewer. The high rating of 4.8 out of 5 stars (19 reviews) reflects consistent performance across residential installations.
Because vertical designs occupy minimal horizontal space, they are ideal for cramped sump pits where a horizontal float might interfere with debris or pipework.
2. Mechanical Horizontal Float Switches
Horizontal float switches float on the water surface and move laterally to close a circuit. Their elongated shape distributes buoyancy evenly, making them suitable for large tanks where water level changes are gradual.
While the product list does not include a dedicated horizontal model, the principles discussed apply to many installations. Users who require a broader coverage area may consider adapting the vertical switch with a longer arm, although this could affect response time.
The advantage of a horizontal design is reduced risk of the float becoming lodged against vertical walls. However, the mechanical linkage can be more exposed to debris, potentially increasing maintenance frequency.
For projects where space permits and water clarity is high, a horizontal float can provide smoother operation than a vertical counterpart.
3. Electronic (Solid‑State) Float Switches
Electronic float switches replace mechanical contacts with magnetic or capacitive sensors, delivering faster response times and higher durability in corrosive environments. They typically integrate a microcontroller that can be programmed for custom activation thresholds.
Although the featured product is mechanical, its heavy‑duty contacts demonstrate the reliability that electronic models aim to improve upon. Electronic switches often carry a premium price, but the investment can be justified in industrial settings where downtime is costly.
Potential drawbacks include sensitivity to electrical noise and the need for periodic calibration. Users must also verify that the pump’s voltage and current specifications match the switch’s ratings.
In applications such as wastewater treatment plants, the precision of an electronic switch can prevent over‑pumping and reduce wear on pump components.
4. Dual‑Stage Float Switches
Dual‑stage switches incorporate two independent floats that trigger at different water levels. The lower float activates the pump, while the upper float can signal an alarm or initiate a secondary pump for redundancy.
The WASSERMANN Vertical Float Switch includes two installation methods, allowing it to be mounted on either the pipe or the pump. While it does not provide a second float, the flexibility in mounting can mimic a dual‑stage approach by placing a second identical unit at a higher elevation.
Advantages of true dual‑stage systems include early warning of rising water levels and the ability to manage larger volumes without over‑relying on a single pump. The main disadvantage is increased complexity and higher initial cost.
Facilities that cannot tolerate any water ingress, such as data centers, often adopt dual‑stage configurations to ensure continuous protection.
5. Magnetic Reed Float Switches
Magnetic reed switches use a magnet within the float to close a sealed reed contact inside a glass tube. This design provides excellent isolation from water, making it highly resistant to corrosion and mineral buildup.
Although the WASSERMANN switch utilizes a mechanical contact, its waterproof housing offers comparable protection against moisture. Magnetic reed switches are frequently employed in outdoor rain‑water harvesting systems where exposure to the elements is constant.
The primary benefit is a sealed electrical path that virtually eliminates the risk of short circuits. However, the magnetic force must be sufficient to actuate the reed reliably, which can be a limitation in very viscous fluids.
When selecting a magnetic reed switch, verify that the operating temperature range exceeds the maximum water temperature; the WASSERMANN float tolerates up to 125 °C, indicating robust thermal performance.
6. Pressure‑Based Float Switches
Pressure‑based switches sense water depth by measuring hydrostatic pressure rather than relying on a floating element. This approach eliminates moving parts, resulting in a longer service life in environments with heavy debris.
Mechanical switches such as the WASSERMANN model can be affected by sediment that hampers float movement. In contrast, a pressure sensor remains functional even when the water contains sand or sludge.
The drawback is that pressure switches often require a power source for the sensing circuit, adding wiring complexity. Calibration may also be necessary when the fluid density changes.
Applications that benefit from pressure‑based technology include underground cisterns and industrial cooling towers where particulate matter is common.
7. Smart Wi‑Fi Enabled Float Switches
Smart float switches integrate wireless connectivity, allowing users to monitor water levels remotely via smartphone applications. Alerts can be configured to trigger when water exceeds predefined thresholds, enabling proactive intervention.
While the WASSERMANN Vertical Float Switch does not include Wi‑Fi capabilities, its straightforward design can be paired with an external smart controller to achieve similar functionality. The low price point of $36.99 makes it an economical base unit for a DIY smart system.
Benefits include real‑time notifications, data logging for trend analysis, and the ability to integrate with home automation platforms. The primary limitation is the reliance on a stable network connection and the added cost of a compatible hub.
Homeowners seeking to modernise their flood‑prevention strategy often start with a reliable mechanical switch and augment it with a smart module for enhanced peace of mind.
Comparison of Key Features
| Feature | Mechanical Vertical (WASSERMANN) | Electronic | Magnetic Reed | Pressure‑Based |
|---|---|---|---|---|
| Price (USD) | $36.99 | Higher | Comparable | Higher |
| Voltage Rating | AC 125 V/250 V | Varies | Varies | Varies |
| Current Rating | 16 A | Varies | Varies | Varies |
| Installation Flexibility | Pipe or pump mounting | Often fixed | Fixed | Fixed |
| Waterproof Rating | Water‑tight housing | Sealed | Sealed | Sealed |
| Customer Rating | 4.8/5 (19 reviews) | Varies | Varies | Varies |
Conclusion
Understanding the seven primary types of sump pump float switches empowers readers to select a device that aligns with their specific environmental constraints and performance expectations. Mechanical vertical switches such as the WASSERMANN Vertical Float Switch provide dependable, cost‑effective operation for most residential basements.
For specialised applications—whether they demand higher precision, remote monitoring, or resistance to harsh chemicals—alternative technologies like electronic, magnetic reed, pressure‑based, or smart Wi‑Fi enabled switches may deliver superior results. By weighing the pros and cons outlined above, homeowners and facility managers can implement a flood‑prevention system that minimizes risk, reduces maintenance, and safeguards valuable assets.
Products Mentioned in This Article
Frequently Asked Questions
What is a mechanical vertical float switch and how does it operate?
It uses a buoyant ball that rises with water to mechanically close a contact, turning the pump on when the water reaches a set level.
How do electronic (pressure) float switches differ from mechanical switches?
Electronic switches sense water level via pressure or conductivity sensors and trigger the pump without moving parts, offering adjustable set points and quieter operation.
Which float switch type works best in tight spaces or limited clearance areas?
Horizontal or low‑profile paddle switches are ideal because they lie flat against the tank wall and require minimal vertical space.
What routine maintenance helps ensure a float switch remains reliable?
Inspect for debris, test activation regularly, and clean contacts or sensors according to the manufacturer’s guidelines.
Can a float switch help prevent pump burnout and reduce energy use?
Yes, by accurately stopping the pump at the desired water level, it avoids unnecessary run time and reduces wear on the pump motor.
